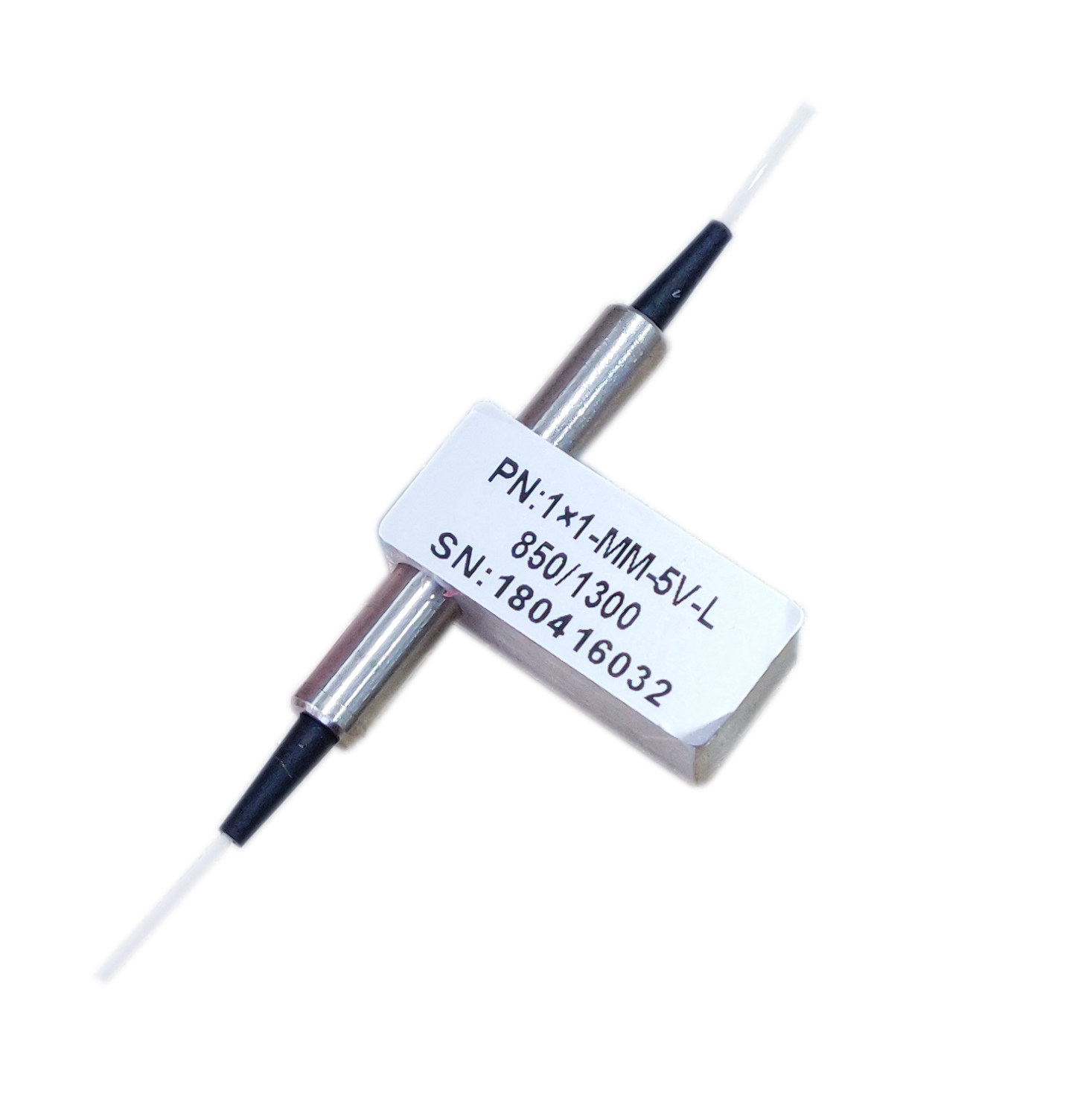

1*1 Mechanical Optical Switch Fast Optical Network Protection 1260~1650nm

  • 1
  • 2

Brand Name : SHKE

Model Number : 1*1 Mechanical Fiber Optical Switch

Certification : ISO9001

Place of Origin : China

MOQ : 50 pcs

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000 pcs / month

Delivery Time : 10 workdays

Packaging Details : carton

Product Name : 1*1 Mechanical Fiber Optical Switch

Wavelength Range : 850±50 / 1310±50nm / 1260~1650nm

Insertion Loss : ≤0.5dB

WDL : ≤0.30dB

Repeatability : ± 0.02dB

Switching Time : ≤5ms

Maximum Optical Power : ≤500mW

Operating Temperature : -20℃ to +70℃

Dimension : (L)25.0 × (W)12.0 × (H)7.5 ± 0.2mm

Contact Now

1*1 Mechanical Fiber Optical Switch​

Description:
The 1x1 optical switch is connected to the optical path by connecting or blocking the optical signal, the product is controlling by electrical signal to switch the optical path. the excellent design makes the product have the advantages of high stability, high reliability, low loss, which are widely used in the switching and protection of optical network.

Features:
● Low Insertion Loss
● Epoxy-free on Optical Path
● Network Security and Monitoring

Application:
● System Monitoring
● High Stability, High Reliability, Low Crosstalk
● Optical sensing system

1*1 Mechanical Optical Switch Fast Optical Network Protection 1260~1650nm

SHKE Communication Tech Co., Ltd. (SHKE) is an industry leader in providing fiber optic products, engineering expertise and integrated services to the telecommunications industry since 2003. We manufacture, engineer and install the fiber optic products and equipment that communications providers need to provide high-speed voice, video and data services to their customers2.
We are constantly expanding product offerings so that our customers have a leading edge in todays competitive market. Over the years we have garnered a reputation for consistently delivering innovative products.
